How will anode carbon block be used in aluminum plants?

Anode carbon blocks are crucial components in aluminum production plants, particularly in the electrolysis process used to extract aluminum from alumina. Here's how anode carbon blocks are used in aluminum plants:

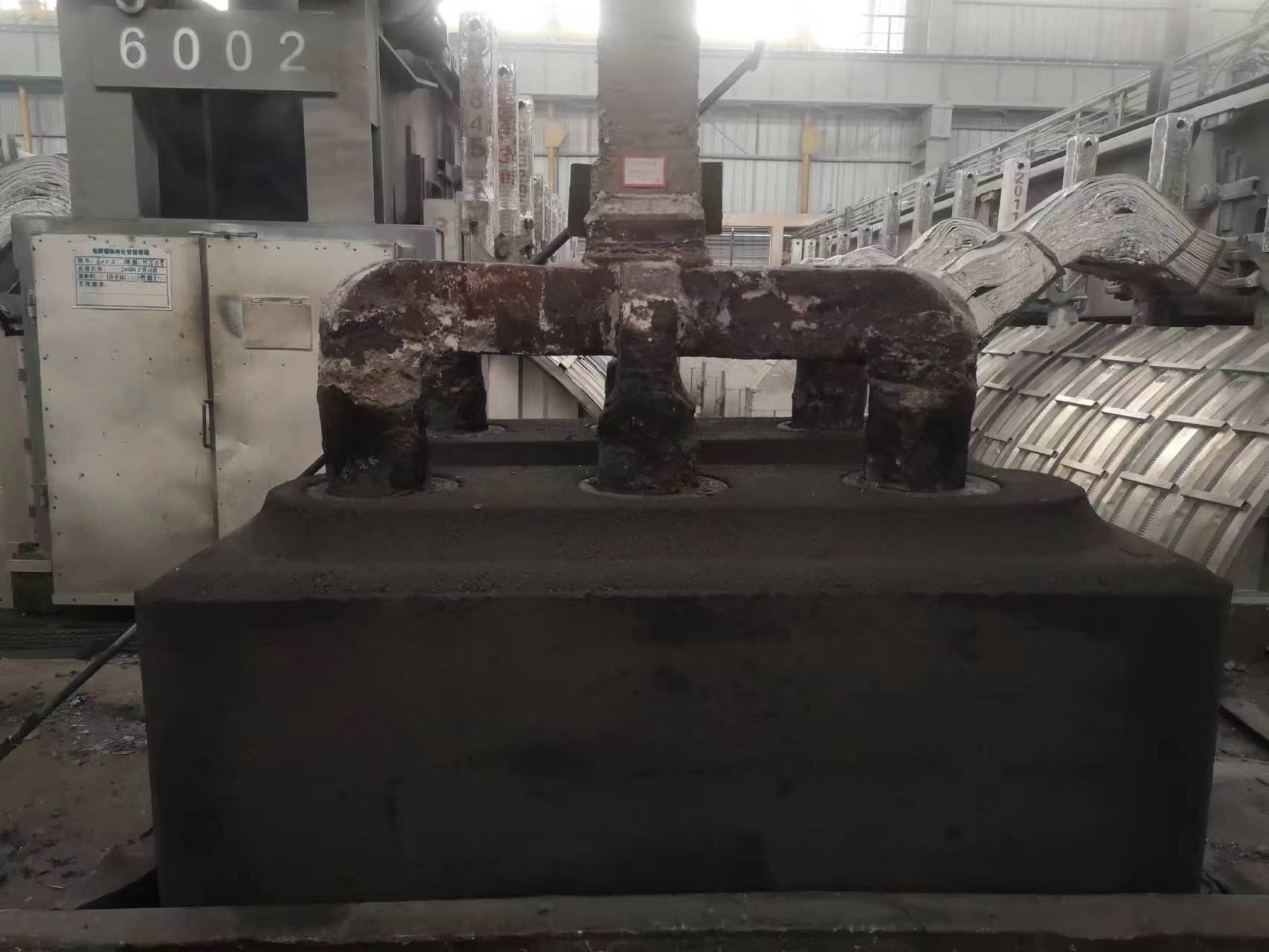

1. Electrolysis Cell: Anode carbon blocks are installed as anodes in electrolysis cells. These cells consist of a large container lined with anode carbon blocks and filled with molten cryolite (a mixture of aluminum fluoride and sodium fluoride). The anode carbon blocks are immersed in the molten cryolite bath.




2. Electrolysis Process: During the electrolysis process, electric current is passed through the molten cryolite, causing the aluminum oxide (alumina) dissolved in it to break down into aluminum metal and oxygen gas. The carbon anodes react with the oxygen ions produced at the positive electrode (anode) to form carbon dioxide and carbon monoxide.




3. Carbon Consumption: As the electrolysis process progresses, the carbon anodes are consumed due to the reaction with oxygen and the formation of carbon dioxide and carbon monoxide. This consumption leads to the gradual erosion of the anode carbon blocks.




4. Regular Replacement: To maintain the efficiency of the electrolysis process, the consumed anode carbon blocks need to be regularly replaced with new ones. Typically, this replacement is done periodically based on the rate of consumption and the operational requirements of the aluminum plant.




5. Heat Generation: Anode carbon blocks also play a role in generating heat within the electrolysis cell. The electrical resistance of the carbon anodes results in the generation of heat, which helps to keep the electrolyte molten and facilitate the aluminum extraction process.

Overall, anode carbon blocks are essential for the electrolytic production of aluminum, providing the necessary electrical conductivity, reacting with oxygen ions, and generating heat to sustain the process efficiently.
